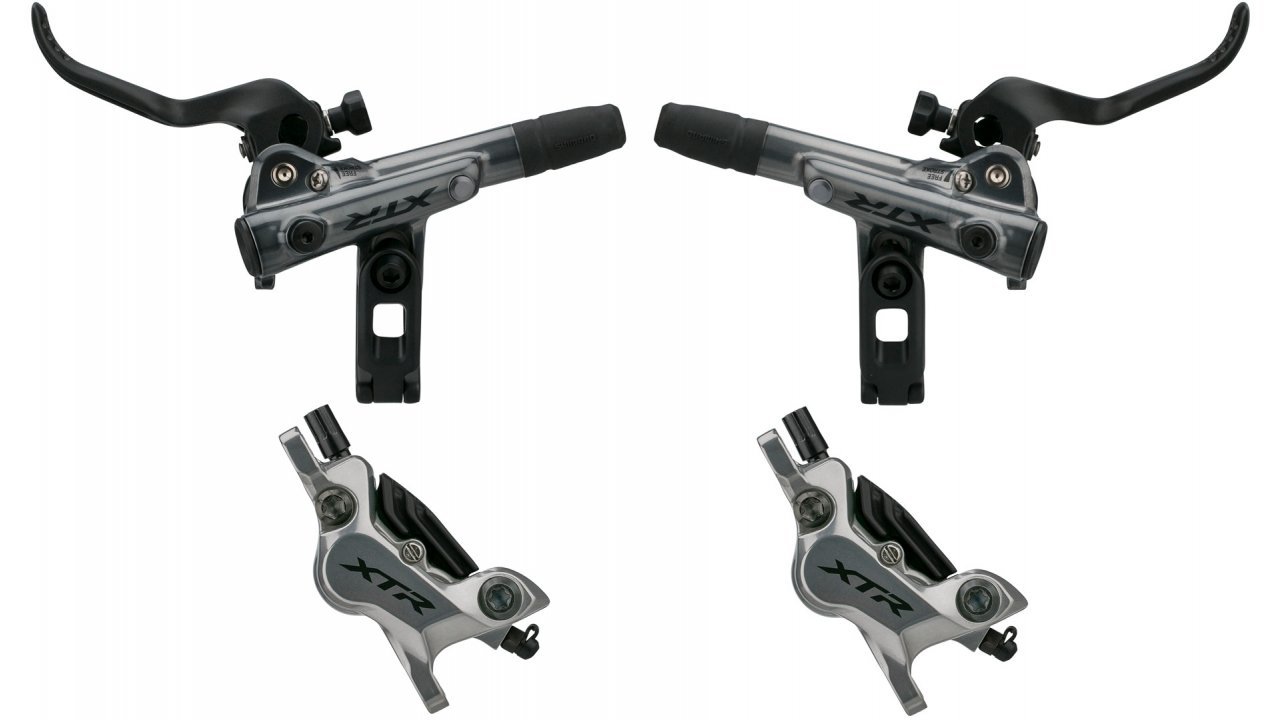

ชุดดิส XTR SHIMANO XTR Disc Brake 4-Pistons BR-M9120 + BL-M9120 | FRONT WHEEL, Rear Wheel
对不起，没有找到结果。
LNWPAY-COMPLETE_DETAIL
(LNWPAY-WAIT)
LNWPAY-CORRECT_DETAIL
(LNWPAY-WAIT)
LNWPAY-REASONABLE
(LNWPAY-WAIT)
LNWPAY-QUALITY
(LNWPAY-WAIT)
商品详情
| PRODUCT-SHORT_DESCRIPTION |
XTR DISC BRAKE ได้ปรับปรุงระบบเบรกจักรยานเสือภูเขาในตำนานของ Shimano ให้ดียิ่งขึ้น XTR ใหม่ เพิ่มความแข็งแกร่งของเบรกเพื่อการควบคุมจักรยานที่ดียิ่งขึ้นและเพิ่มประสิทธิภาพการเบรกสำหรับสไตล์การขี่ที่แตกต่างกัน นอกจากนี้ การออกแบบ 4 ลูกสูบสไตล์ Enduro ยังให้ความสำคัญกับกำลังเบรค และความรู้สึกเบรกที่นุ่มนวล
Shimano ย้ายตำแหน่งแคลมป์เบรกไปในบอร์ดเพื่อปรับปรุงความแข็งแกร่งที่ก้านบังคับ ทำให้เกิดจุดสัมผัสพิเศษระหว่างบาร์กับคันโยก การค้ำยันที่เพิ่มเข้ามานี้ช่วยเพิ่มประสิทธิภาพและการควบคุมจักรยานได้อย่างมากในขณะที่ให้การเบรกอย่างรวดเร็ว นอกจากนี้ การออกแบบใหม่นี้ยังช่วยลดผลกระทบต่อพื้นที่ส่วนควบคุมของห้องคนขับ ทำให้เกิดช่องว่างระหว่างแคลมป์และจุดรองรับสำหรับติดตั้งอุปกรณ์เสริมอื่นๆ ของแฮนด์บาร์
|
| DATA |
重量
条形码
PRODUCT-CREATED_TIME
新上市的
|
| 商品详情 |
Specifications:Series: XTR M9100Application: Enduro, Trail Type: hydraulic, 4 pistons Brake Actuation: mineral oil Hose: SM-BH90-SBM Hose Length (Front/Rear): 1000 mm/1700 mm Technical Information - Caliper:Mount: post mountPistons: 4 Pads: N03A resin with cooling fins (N04A metal optional) Design: 2-piece Calliper Material: aluminium Hose Connection: banjo Technical Information - Lever:Lever Length: 2-fingerAdjustment Options: reach adjust (no tools required), free stroke Mount: clamp (split), I-Spec EV Design: right side (side specific), left side (side specific) Lever Material: aluminium Brake Lever Housing Material: aluminium Hose Connection: straight Features:- higher braking force with reduced input force at fingertips, highly linear response, and braking power, stroke, and time lag reduced- 10 % braking power-up (vs M9020) - inside hose routing - update brake lever shape - quicker rebound between actions maintains rider concentration - greater flexibility and action-optimized cockpit layout - 8 % stiffer than M9020 even under high temp conditions - IS mount with a mount adapter - ceramic pistons - recommended rotor: RT-MT900 - calliper painted, titanium fixing bolt (4 mm) - funnel bleeding - I-Spec EV compatible - lever anodized, housing painted, SUS clamp bolt (painted) Technology:Servo WaveWhen you pull a servo wave brake lever, initial pad travel is fast, so little lever movement is needed to bring the pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim contact, so more lever stroke is used to apply greater braking power with improved control. One Way Bleeding One way bleeding was developed for quick and easy prevention of air in Shimano’s hydraulic system. Shimano has streamlined the oil route throughout the system to prevent An air bubble from being captured. One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system. Ice-Tech The fade, which can occur to the rotor and pad when braking on a long downhill ride, harms braking performance. Therefore, Shimano has adopted Ice Technology rotors and Ice Technology pads to realize the cooling technology for consistent performance. The rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminium and stainless steel, provides better radiation performance from 400 °C to 300°C surface temperature. Also, the radiation fin has been adopted for the pad. Moreover, the rotor blade and the radiator fin provide long pad life, less noise, less fade and are lightweight. XTR, Saint, Deore XT, SLX, Zee, Deore LX callipers are bundled with Ice Technology pistons to achieve optimized lightweight, high rigidity and heat dissipation. Oversized pistons transfer hydraulic power directly to the brake pad, and ceramic material is used to avoid heat transfer for constant stable braking, providing efficient stopping power transfer without loss. Factory Number:I-M9120KLFPSA100 + I-M9120KRRXSA170Contents:- 2 x Shimano XTR BR-M9120 + BL-M9120 disc brakes, front and rear- 1 x Shimano SM-BH90-SBM brake hose 1000 mm (front) - 1 x Shimano SM-BH90-SBM brake hose 1700 mm (rear) - 2 pairs of Shimano N03A brake pads - 2 x insert pins - 2 x olives - 4 x ccalliperbolts - 1 x bleed block (front) - 1 x Shimano TL-BH61 assembly tool, 2-parts (front) - rotor not included - adapter not included - mount ready (filled and bled)           |
| 其他条件 |
Further improving Shimano’s legendary mountain bike braking system, new XTR increases brake rigidity for greater bike control and optimizes braking performance for different riding styles. The Enduro-style 4-piston design prioritizes power and smooth braking feel.
To improve rigidity at the lever, Shimano moved the brake clamp position inboard, creating an extra point of contact between the bar and the lever. This added bracing drastically increases efficiency and control over the bike while offering quick brake engagement. The new design minimizes impact on cockpit real estate, creating space between the clamp and support point for mounting other handlebar accessories. Specifications:Series: XTR M9100Application: Enduro, Trail Type: hydraulic, 4 pistons Brake Actuation: mineral oil Hose: SM-BH90-SBM Hose Length (Front/Rear): 1000 mm/1700 mm Technical Information - Caliper:Mount: post mountPistons: 4 Pads: N03A resin with cooling fins (N04A metal optional) Design: 2-piece Caliper Material: aluminium Hose Connection: banjo Technical Information - Lever:Lever Length: 2-fingerAdjustment Options: reach adjust (no tools required), free stroke Mount: clamp (split), I-Spec EV Design: right side (side specific), left side (side specific) Lever Material: aluminium Brake Lever Housing Material: aluminium Hose Connection: straight Features:- higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced- 10 % braking power up (vs. M9020) - inside hose routing - update brake lever shape - quicker rebound between actions maintains rider concentration - greater flexibility and action-optimized cockpit layout - 8 % stiffer than M9020 even under high temp conditions - IS mount with mount adapter - ceramic pistons - recommended rotor: RT-MT900 - caliper painted, titanium fixing bolt (4 mm) - funnel bleeding - I-Spec EV compatible - lever anodized, housing painted, SUS clamp bolt (painted) Technology:Servo WaveWhen you pull a servo wave brake lever initial pad travel is fast, so little lever movement is needed to bring the pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim contact so more of the lever stroke is used to apply greater braking power with improved control. One Way Bleeding One way bleeding was developed for quick and easy prevention of air in Shimano’s hydraulic system. Shimano has streamlined the oil route throughout the system to prevent air bubble from being captured in the system. One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system. Ice-Tech The fade, which can occur to rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. Shimano has adopted Ice Technology rotors and Ice Technology pads to realize the cooling technology for consistent performance. The rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance achieving from 400 °C to 300°C surface temperature. Also, the radiation fin has been adopted for the pad. Moreover, the rotor blade and the radiator fin provide long pad life, less noise, less fade and are lightweight. XTR, Saint, Deore XT, SLX, Zee, Deore LX calipers are bundled with Ice Technology pistons in order to achieve optimized lightweight, high rigidity and heat dissipation. Oversized pistons transfer hydraulic power directly to the brake pad, and ceramic material is used to avoid heat transfer for constant stable braking, providing efficient stopping power transfer without loss. Factory Number:I-M9120KLFPSA100 + I-M9120KRRXSA170Contents:- 2 x Shimano XTR BR-M9120 + BL-M9120 disc brakes, front and rear- 1 x Shimano SM-BH90-SBM brake hose 1000 mm (front) - 1 x Shimano SM-BH90-SBM brake hose 1700 mm (rear) - 2 pairs of Shimano N03A brake pads - 2 x insert pins - 2 x olives - 4 x caliper bolts - 1 x bleed block (front) - 1 x Shimano TL-BH61 assembly tool, 2-parts (front) - rotor not included - adapter not included - mount ready (filled and bled) |
