แร็คจักรยาน แร็คท้ายรถ BUZZRACK BUZZRACER 3 2020 3 BIKES REAR RACK.



DESCRIPTION

The BUZZRACER 3 is a well designed, well-engineered piece of kit; smart, sophisticated, and excellent value for money.



Also, an excellent solution is to carry two bikes only with a lot of space between the 2!







Basic ergonomics



Very compact geometry but fits most bike sizes!



Bike fixing is designed to be quick and efficient.



The lightweight makes the BUZZRACER 3  very easy to carry around, easy to fit and remove, and easy to load three bikes.



Key features of the BUZZRACER 3



Assembly: Even though it is not assembled, BUZZRACER 3 is very easy to put together: make the wheel support frame to the base using seven screws, build the light support with two more screws, install the license plate, slide in the plastic wheel supports, fit the rack to the tow ball with no tools needed, and you are ready to go!



Fitting to the car: When you first place the BUZZRACER 3 on the tow ball, it supports itself – you can let go of it, and it won’t fall to the ground. You’ll then retake the weight, spin the tightening knob until it’s tight, and lock it. BUZZRACK‘s carriers comply with the exacting standard XPR-18-904-4 and therefore include an anti-sway tensioner; this has an integrated handle, and 2 or 3 turns are usually sufficient. The video below shows the fitting of the car and the installation of bikes.



Holding the bike: The first step is to adjust the wheel support to accommodate the bike geometry. Once this is done, it will be very fast to install the bike next time you use the rack. The exceptional shape of the wheel supports help to hold the bike vertically while attaching the frame using the adjustable ratchet cradle.



Lighting system: The BUZZRACER 3 comes with a seven-pin lighting system. 7 pins to 13 pin adapter is not included but can be purchased as an option.



Tilting: Tilting is easy and is very well balanced, even with a full load. The BUZZRACER 3 sits relatively high on the tow ball, and the tilt function is optimized to prevent the lights from hitting the road surface, while still using the weight of the bikes to help bring the bike platform back to the level again in a controlled way. But this geometry doesn’t allow for tall vertical tailgates to be opened – e.g., VW Transporter T5 and T6.



Carrying bikes

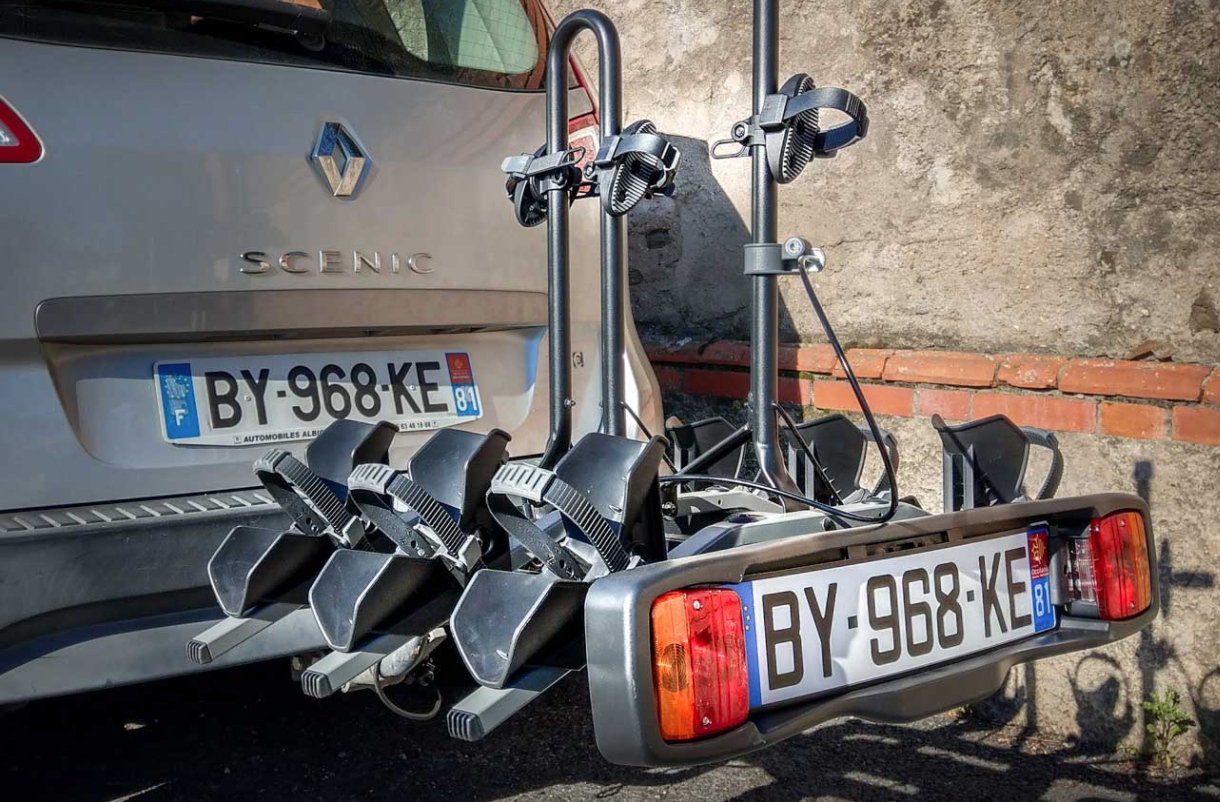

The wheel holders will accommodate all wheelbases, even small children’s bikes. You can reverse the wheel supports for the tiny bikes.

The long wheel rubber-padded wheel straps hold tires up to 3.25” wide; pull on them to tighten, and use the quick release to loosen.

The BUZZRACER 3 is entirely suitable for carbon frame bikes; the rubber-padded bike frame cradles rotate 360 degrees. Again, using rubber-padded straps, they hold any tube firmly but gently.

The maximum permitted load is 60kg, with no bike weighing more than 20kg.

Electric bikes up to 20kg may be carried, although the BUZZRACER series is not optimized for e-bikes (see E-Scorpion for e-bikes); the down tube size is limited 75mm diameter (3″); whatever bikes you have, always load the heaviest bikes nearest to the car.

There is a built-in locking cable to secure your bikes; as usual with cable locks, it’s a deterrent only.

Other features and basic specifications



The patented conical fitting fits all tow balls, even to the bolt-on tow balls we occasionally see that do not meet standards for neck length or ball diameter.

A reminder that it locks to the tow ball.

The BUZZRACER 3 sits high on the tow ball, clear of speed bumps and other hazards such as steep ferry ramps.

Dimensions: 88cm wide x 77cm deep (measured from the center of the tow ball to the number plate holder).

Weight: 14.5kg

The build quality – tube bending, welding, rust proofing, painting, component quality, is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided.

All parts are replaceable if, e.g., someone forgets that a tow bar carrier is fitted and reverses into a wall – which happens!

USEFUL INFORMATION

USEFUL INFORMATION

TECHNICAL SPECIFICATIONS



Max number of bikes: 3

Max weight per bike: 20kg

Max load capacity: 60kg

Max tire size: 3.25″

Max bike frame down tube size: diameter 75mm(3″)

Fits all ISO 50mm tow ball: yes

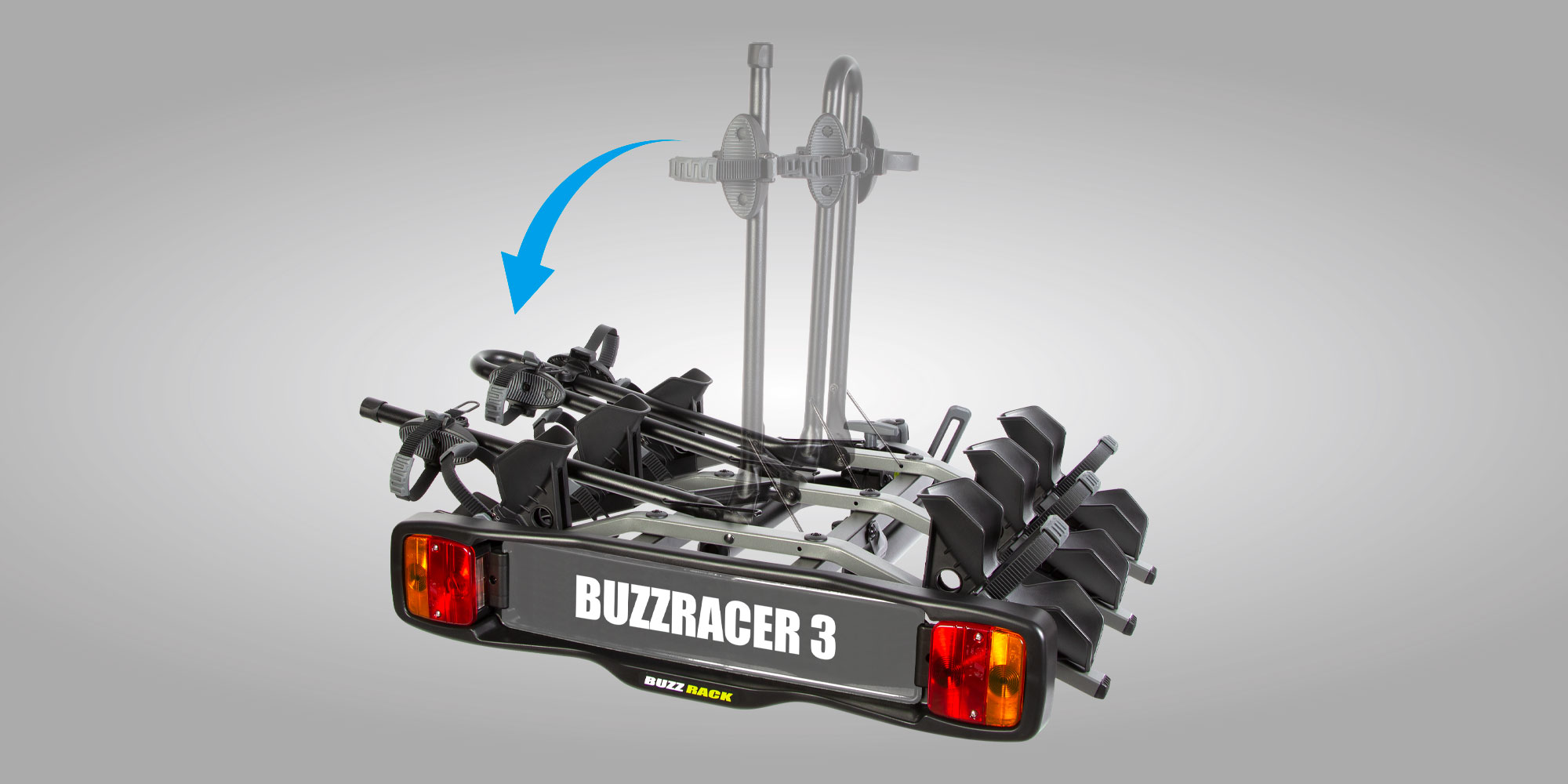

Dimensions (width x depth x height): 88 x 77 x 72 cm (24cm when folded)

(depth measured from the center of the tow ball mount to the outside edge of the number plate holder).

Weight: 14.5kg

Tilting: yes

Integrated lighting board: yes

Lighting board plug type: 7 pin

Bike carrier to tow ball lock: yes

Bike carrier to bike lock: yes



The tow bar nose weight also determines the maximum permitted load you can carry; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.

Requires 65mm clearance from the center of a tow ball to the rear of the vehicle.
